Preparing Ocean Work outside Thule Air Base

Posted on March 6, 2017 by | 5 comments

I am heading to North Greenland in 3 days time to work where temperatures will be close to -20 F. The ocean is covered by 3-4 feet of sea ice that is frozen to land. We will drill lots of ice holes to deploy ocean sensors that will connect via cables to weather stations and satellite phone. Fancy $20,000 GPS units will measure the tides across the fjord and provide a group of future Naval officers a reference for their fancy electronic gear to measure sea ice thickness remotely by walking and comparing results to those obtained from planes overhead. Cool and cold fun.

img_20170302_111051404

The ocean pier at Thule Air Base in Greenland in March 2017. The view is towards the north-west along my proposed mooring line [Photo Credit: Sean Baker]

There has been much packing and shipping the last weeks, about 2300 lbs to be precise,which made my body stiff and sore. Another way to hurt my aging body was to learn shotgun shooting for the unlikely polar bear encounter on the sea ice. My shoulder still hurts from the recoil blasts of the 12 gauge pump-action gun with 3” long cartridges that included a 1 oz. lead slug. I also tested a cot and sleeping bag that will be with me on the ice for emergencies. The night in my garden a few days ago was cozy, but the cot required an insulation mattress, as it was too close to the ground. It was rough sleeping, because of unexpected noises not cold, but I did sleep some and woke up when the sun came up.

Cot, air mattress, and down sleeping bag testing in my garden after a rough night.

Cot, air mattress, and down sleeping bag testing in my garden after a rough night.

The clear skies over Thule during the 2 weeks that the sun is up again also gave me the first Landsat image. It shows the landfast sea ice, but it also shows its very limited extend as very thin ice and perhaps even open water occurs while the winds blow along the coast from the north. This cold wind moves the mobile sea ice offshore to the west thus opening up the oceans that will promptly freeze, however, the back ocean still shows under the inch-thin new ice:

Wolstenholme Fjord as seen by LandSat on Feb.-27, 2017. The line with the red dots extends from Thule pier seaward towards the north-west. Note the dark spot near the left-top corner that shows thin new ice or even open water. White contours are ocean depths in meters.

Wolstenholme Fjord as seen by LandSat on Feb.-27, 2017. The line with the red dots extends from Thule pier seaward towards the north-west. Note the dark spot near the left-top corner that shows thin new ice or even open water. White contours are ocean depths in meters.

This thin new ice is the limit of where I expect to be working. After measuring ice thickness directly via drilling through the ice, my first measurement will be that of how temperature and salinity varies from under the ice to the bottom of the ocean.

Working on the sea ice off northern Greenland [Photo credit, Steffen Olsen]

Working on the sea ice off northern Greenland [Photo credit, Steffen Olsen]

Danish friends do this routinely about 60 miles to the north where they work out of the Inughuit community of Qaanaaq, but Inglefield Fjord is much deeper and connects to warm Atlantic waters from the south that, I believe, we do not have in Wolstenholme Fjord. Hence I expect much less heat inside Wolstenholme Fjord and perhaps a different response of three glaciers to ocean forcing. This theory does not help me much as I will have to lower instruments via rope and a winch into the water. How to attach rope to instruments and winch? Knots.

I am very poor at making knots as my hand-eye co-ordination and memory is poor. So I spent some time this week to learn about knots such as

that should work on my braided Kevlar lines that I connect to shackles

Fancy knots on shackles in my home office ... yes, Peter Freuchen is on the bookshelf, too.

Fancy knots on shackles in my home office … yes, Peter Freuchen is on the bookshelf, too.

There are always devils in the many details of field work. Another worry is that my 10” ice-drill is powered by 1 lbs bottles of propane. It is not possible to send these camping propane canisters via air, but larger 20 lbs tanks exist in Thule for grill cooking at the NSF dormitory where I will be staying. So I also will have to learn how to fill the smaller container from the large one. Just ordered another adaptor from Amazon to travel with me on my body to do this.

I am both terribly nervous and excited about the next 6 weeks. This is my first time working on the ice, because before I have always been on icebreakers in summer. These past Arctic summer expeditions on ships created an unreal and distant connection that, I hope, will be shattered by this spring. I will get closer to the cold and icy seas that are my passion. Oceanography by walking on water … ice.

5 Comments

Posted in Greenland, Ice Cover, Oceanography, sea ice, Thule

Tagged , , , , , , ,

Sea Ice from Satellite at 20-m Resolution

Posted on February 7, 2017 by | Leave a comment

I am a self-taught amateur on remote sensing, but it tickled my pride when a friend at NASA asked me, if I could tell a friend of his at NOAA on how I got my hands on data to produce maps of radar backscatter to describe how the sea ice near Thule Air Base, Greenland changes in time and space.

Wolstenholme Fjord, Greenland Feb.-5, 2017 from Sentinel-1 radar. The data are at 20-m resolution

Wolstenholme Fjord, Greenland Feb.-5, 2017 from Sentinel-1 radar. The data are at 20-m resolution

In about 4 weeks from today I will be working along a line near the red dots A, B, and C which are tentative locations to place ocean sensors below the sea ice after drilling through it with ice fishing gear. The colored line is the bottom depth as it was measured by the USCG Healy in 2003 when I was in Thule for the first time. Faint bottom contours are shown in gray.

I discovered the 20-m Sentinel-1 SAR-C data only 3 weeks ago. They are accessible to me (after making an account) via

https://scihub.copernicus.eu/dhus/#/home

where I then search for a specific geographic area and time frame using the following “product”

Product Type: GRD
Sensor Mode: IW
Polarization: HH

Screenshot on how I search for the Sentinel-1 SAR-C DATA.

Screenshot on how I search for the Sentinel-1 SAR-C DATA.

The more technical detail can be found at

https://sentinel.esa.int/web/sentinel/user-guides/sentinel-1-sar

where one also finds wonderful instructional videos on how to work the software.

The data file(s) for a typical scene are usually ~800 MB, however, for processing I use the free SNAP software (provided by European Space Agency) via a sequence of steps that result in a geotiff file of about 7 MB.

Screenshot of SNAP software and processing with [1] input and [2] output of the Feb.-5, 2017 data from Wolstenholme Fjord.

Screenshot of SNAP software and processing with [1] input and [2] output of the Feb.-5, 2017 data from Wolstenholme Fjord.

This .tiff file I then read with Fortran codes to tailor my own (quantitative or analyses) purposes.

Start of Fortran code to covert the SNAP output geotiff file into an ascii file with latitude, longitude, and backscatter as columns. The code has 143 lines plus 80 lines of comment.

Start of Fortran code to covert the SNAP output geotiff file into an ascii file with latitude, longitude, and backscatter as columns. The code has 143lines plus 80 lines of comment.

The final mapping is done with GMT – General Mapping Tools which I use for almost all my scientific graphing, mapping, and publications.

Please note that I am neither a remote sensing nor a sea-ice expert, but consider myself an observational physical oceanographer who loves his Unix on a MacBook Pro.

Working the Night shift aboard CCGS Henry Larsen in the CTD van in Aug.-2012. [Photo Credit: Renske Gelderloos]

Working the Night shift aboard CCGS Henry Larsen in the CTD van in Aug.-2012. [Photo Credit: Renske Gelderloos]

If only my next problem, working in polar bear country with guns for protection, had as easy a solution.

Polar bear as seen in Kennedy Channel on Aug.-12, 2012. [Photo Credit: Kirk McNeil, Labrador from aboard the Canadian Coast Guard Ship Henry Larsen]

Polar bear as seen in Kennedy Channel on Aug.-12, 2012. [Photo Credit: Kirk McNeil, Labrador from aboard the Canadian Coast Guard Ship Henry Larsen]

Leave a comment

Posted in Computing, Greenland, Ice Cover, sea ice, Thule

Tagged , , , , , , , ,

North Greenland Sea Ice: Wolstenholme Fjord and Thule Air Base

Posted on January 30, 2017 by | 1 comment

Greenland hunters, seals, and polar bears all need sea ice atop a frozen ocean to eat, breath, or live. The sea ice around northern Greenland changes rapidly by becoming thinner, more mobile, and less predictable as a result of warming ocean and air temperatures. I will need to be on the sea ice to the north and west of Thule Air Base in March and April about 6 weeks from to conduct several connected science experiments. The ice should be “land fast,” that is, it should be a solid, not moving plate of ice. The work is funded by the National Science Foundation who asked me to prepare a sea ice safety plan to keep the risk to people working with me to a minimum. In a science plan I included this satellite image of what the ice and land looked like in march of 2016:

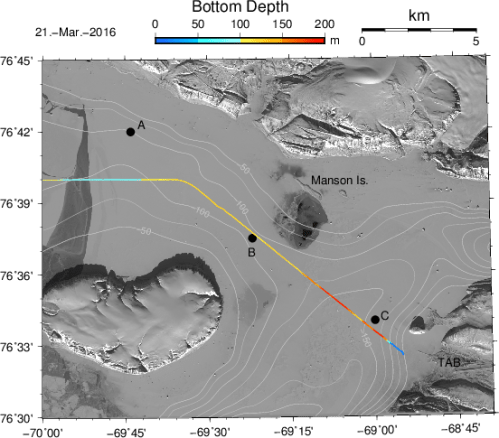

Optical satellite image of Wolstenholme Fjord, Greenland on March-21, 2016 with Thule Air Base in bottom right. Darker areas show thin ice.

Optical satellite image of Wolstenholme Fjord, Greenland on March-21, 2016 with Thule Air Base in bottom right. Darker areas show thin ice.

This LandSat image captures the reflection of sun light during a cloud-free day at ~15 m pixel size. No such imagery exists for 2017 yet, because the sun does not set until late February with this US satellite overhead. The European Space Agency (ESA), however, flies a radar on its Sentinel satellite. This radar sends out its own radio waves that are then reflected back to its antenna. The radar sees not only during the polar night, it can also see through clouds. And ESA provides these data almost instantaneous to anyone who wants it and knows how to deal with large data files. If you think your 8 mega pixels are sharp, these images are closer to 800 mega pixels. Here are three such images from January 3, 24, and 28 (yesterday):

The lighter white tones indicate that lots of radar signals return to the satellite. The many tiny white specks to the south of the Manson Islands are grounded icebergs. The different shades of gray indicate different types of ice and snow. The Jan.-24 and Jan.-28 images show a clear boundary near longitude of -70 degrees to the north of the island (Saunders Island) that separates land-fast ice to the east from thinner and mobile ice in Baffin Bay to the west.

I plan to work from Thule Air Base (red dot bottom right) out along points C, B, towards A. The color of line near these points is a section where I have very accurate bottom depth from a 2003 US Coast Guard Icebreaker that was dropping off scientists at Thule on August 15, 2003. I was then one of the scientist dropped off after a 3 week excursion into Nares Strait and Petermann Fjord. Along this section I hope to test and deploy and under-water acoustic network that can send data via whispers from C to A via B. First, however, we will need to know how sound moves along this track and before that, for my ice safety plan, I will need to know how thick or thin the ice is. The imagery does not tell me ice thickness.

Flying to Thule Greenland with US Air force Air Mobility Command delivering cargo and people.

Flying to Thule Greenland with US Air force Air Mobility Command delivering cargo and people.

Arriving in Thule on Mar.-8, we will first need to measure ice thickness along this A-B-C section with a sharp ice-cutting Kovacs drill and a tape measure. The US National Snow and Ice Data Center (NSIDC) distributes a “Handbook for community-based sea ice monitoring” that we will follow closely. This first ice survey will also give us a feel and visual on how the radar satellite imagery displays a range of ice and snow surfaces. One of my PhD students, Pat Ryan, will process and send us the ESA Sentinel-1 radar data while a small University of Delaware and Woods Hole Oceanographic Institution group will work on the ice in early April.

The mental preparation for this scientific travel to Thule and the sea ice beyond gives me the freedom and pleasure to explore new data such as Sentinel-1 imagery and perspectives on tremendous local traditional knowledge of the Inugguit who have lived with the sea ice for perhaps 4000 years. The town of Qaanaaq is 45 minutes by helicopter to the north of Thule Air Base (TAB) at Pituffik. The town was established in 1953 when local populations living in the TAB area were forcibly removed. Despite these challenges the displaced people have prospered throughout the Cold War, but a less predictable and rapidly changing sea ice poses a severe threat to the community whose culture, health, and livelihood still depends on hunting and traveling on sea ice. Stephen Leonard is an anthropological linguist at the University of Cambridge who lived in Qaanaaq for a year in 2010/11 when he made this video:

P.S.: If possible, I would very much like to work with a local person who knows sea ice and wild life that we would need protection from. Danish contacts are reaching out on my behalf to people they know in Siorapaluk, Qaanaaq, and Savissivik.

1 Comment

Posted in Greenland, Ice Cover, sea ice, Thule

Tagged , , , , , , ,

Sea ice and 2016 Arctic field work

Posted on June 15, 2016 by | 2 comments

The sea ice in the Arctic Ocean is quickly disappearing from coastal areas as we are entering the summer melt season. This year I follow this seasonal event with nervous anticipation, because in October and November we will be out at sea working north of northern Alaska. We plan to deploy a large number of ocean sensors to investigate how sound propagates from the deep Arctic Ocean on to the shallow Chukchi Sea. This figure shows our study area with the ice cover as it was reported yesterday from space:

Ice concentration for June 14, 2016 from SSM/I imagery. Insert show study area to the north of Alaska and planned mooring locations (red box).

Ice concentration for June 14, 2016 from SSM/I imagery. Insert show study area to the north of Alaska and planned mooring locations (red box).

Zooming in a little further, I show the coast of Alaska along with 100 and 1000 meter contour of bottom depth over a color map of ice concentrations:

Ice concentrations from SSM/I to the north of norther Alaska with planned mooring locations across the sloping bottom. The 100 and 1000 meter contours are shown in gray with blue and red symbols representing locations of ocean and acoustic sensors, respectively.

Ice concentrations from SSM/I to the north of norther Alaska with planned mooring locations across the sloping bottom. The 100 and 1000 meter contours are shown in gray with blue and red symbols representing locations of ocean and acoustic sensors, respectively.

My responsibilities in this US Navy-funded project are the seven densely packed blue triangles. They indicate locations where I hope to measure continuously for a year ocean temperature, salinity, and pressure from which to construct sections of speed of sound and how it varies in time and space. I will also measure ice draft as well ice and ocean currents from which to estimate the roughness of the sea ice over time. Sea ice and ocean properties both impact sound propagation from deep to shallow water and vice versa.

A first question: What will the ice be like when we get there? This is the question that has the 40 or so people all working on this project anxiously preparing for the worst, but how can we expect what challenges are to come our way?

Doing my homework, I downloaded from the National Snow and Ice Data Center all gridded maps of ice concentrations that microwave satellites measured almost daily since 1978. Then I crunch the numbers on my laptop with a set of kitchen-sink Unix tools and code snippets such as

set ftp = 'ftp://sidads.colorado.edu'
set dir = 'pub/DATASETS/nsidc0081_nrt_nasateam_seaice/north'
...
wget -r -nd -l1 --no-check-certificate $ftp/$dir/$year/$file

along with fancy and free Fortran and General Mapping Tools to make the maps shown above. With these tools and data I can then calculate how much sea ice covers any area at any time. The result for custom-made mooring area at almost daily resolution gives a quick visual that I use to prepare for our fall 2016 expedition. The dotted lines in the top panel indicate the dates we are in the area.

Time series of daily ice concentration in the study area for different decades from January-1 through Dec.-31 for each year from 1980 through 2015. Panels are sorted by decade. The red curve is for 2015 and is shown for comparison in all panels.

Time series of daily ice concentration in the study area for different decades from January-1 through Dec.-31 for each year from 1980 through 2015. Panels are sorted by decade. The red curve is for 2015 and is shown for comparison in all panels.

The story here is well-known to anyone interested in Arctic sea ice and climate change, but here it applies to a tiny spec of ocean between the 100 and 1000 meter isobath where we plan to deployed ocean sensors for a year in the fall of 2016. For the two decades of the last century, the ice cover looks like a crap shoot with 80% ice cover possible any month of the year and ice-free conditions unlikely but possible here or there for a week or two at most. The situation changed dramatically since about 2000. During the last six years our study area has always been free of ice from late August to early October, however, our 2016 expedition is during the transition from ice-free October to generally ice-covered early November, but, I feel, our saving grace is that the sea ice will be thin and mobile. I thus feel that we probably can work comfortable on account of ice for the entire period, but the winds and waves will blow us away …

Weather will be most uncomfortable, because fall is the Pacific storm season. And with little or only thin ice, there will be lots and lots of waves with the ship pitching and rolling and seeking shelter that will challenge us from getting all the work done even with 7 days for bad weather built into our schedule.

I worked in this area on larger ships in 1993, 2003, and in 2004. Here is a photo that Chris Linder of Woods Hole Oceanographic Institution took during a massive storm in the general vicinity in October of 2004. The storm halted all outside work on the 420 feet long USCGC Healy heading into the waves for 42 long and miserable hours:

Icebreaker taking on waves on the stern during a fall storm in the Beaufort Sea in October 2004. [Photo Credit: Chris Linder, Woods Hole Oceanographic Institution]

Icebreaker taking on waves on the bow during a fall storm in the Beaufort Sea in October 2004. [Photo Credit: Chris Linder, Woods Hole Oceanographic Institution]

Oh, I now also recall that during this four-week expedition we never saw land or the sun. It was always a drizzly gray ocean on a gray horizon. The Arctic Ocean in the fall is an often cruel and inhospitable place with driving freezing rain and fog.

2 Comments

Posted in Chukchi Sea, Computing, Global Warming, Ice Cover, Oceanography

Tagged , , , ,

Thule, Greenland in Sharp Focus

Posted on March 25, 2016 by | 1 comment

I want to fly like an eagle
To the sea
Fly like an eagle
Let my spirit carry me

Steve Miller Band, 1976

The eagle “sees” the ground, because the twinkling sensation of light tickles her nerves. Today’s cameras work without the twinkle and tickle. They store numbers (digits) that approximate the amount of light passing through the lens. Satellite sensors work the same way. The data they beam to earth give me the soaring feeling of flying like an eagle, but there is more to the bits and bytes and digits sent home from space to our iPhones, laptops, and the internet.

Aerial photo taken Oct.-13, 1860 of Boston, MA by J.W. Black.

Aerial photo taken Oct.-13, 1860 Boston, MA from a balloon by J.W. Black.

The Metropolitan Museum of Art in New York houses the earliest existing aerial photo that was taken from a balloon hovering 600 meters above Boston, Massachusetts. Within a year the American Civil War broke out and this new technology became an experimental tool of war. It advanced rapidly, when air craft replaced the balloon during the First World War. Sharp photos of bombed-out battle and killing fields along the entire Western Front in France were taken by both Allied and German soldiers every day. Placing these photos on a map for efficient analyses of how a land- sea- or ice-scape changes over time, however, was impossible, because photos do not record precise locations.

Modern satellite photos are different. We now have fancy radar beams, computers, and several Global Position Systems (GPS) with atomic clocks to instantly calculation satellite tracks every second. This is why we now can both take photos from space AND map every dot or pixel that is sensed by the satellite moving overhead at 17,000 miles an hour snapping pictures from 430 miles above. The camera is so good that it resolves the ground at about 45 feet (15 meters). This is what such a (LandSat) picture looks like

LandSat photo/map of Thule, Greenland Mar.-17, 2016. The airfield of Thule Air Force Base is seen near the bottom on the right. The island in ice-covered Westenholme Fjord is Saunders Island (bottom left) while the glacier top right is Chamberlin Gletscher.

LandSat photo/map of Thule, Greenland Mar.-17, 2016. The airfield of Thule Air Force Base is seen near the bottom on the right. The island in ice-covered Westenholme Fjord is Saunders Island (bottom left) while the glacier top right is Chamberlin Gletscher.

Everyone can download these photos from the United States Geological Survey which maintains a wonderful photo and data collection archive at

http://earthexplorer.usgs.gov

but the tricky part is to turn these images or photos into maps which I have done here. More specifically, I wrote a set of c-shell and nawk scripts along with Fortran programs on my laptop to attach to each number for the light sensed by the satellite (the photo) another two numbers (the map). These are latitude and longitude that uniquely fix a location on the earth’s surface. A “normal” photo today has a few “Mega-Pixels,” that is, a few million dots. Each scene of LandSat, however, has about 324 million dots. This is why you can discern both the runways of Thule Air Force Base at 68 degrees 45′ West longitude and 76 degrees 32′ North latitude. The pier into the ice-covered ocean is just a tad to the south of Dundas Mountain at 68:54′ W and 76:34′ N. A scale of 5 kilometers is shown at the top on the right. For spatial context, here is a photo of the pier with the mountain in the background, that is, the object shown in the photo such as mountain, ship, and Helen serves a rough, but imprecise reference:

Dr. Helen Johnson in August 2009 on the pier of Thule AFB with CCGS Henry Larsen and Dundas Mountain in the background. [Credit: Andreas Muenchow]

Dr. Helen Johnson in August 2009 on the pier of Thule AFB with CCGS Henry Larsen and Dundas Mountain in the background. [Credit: Andreas Muenchow]

This photo shows the airfield and Saunders Island

Thule AFB with its airport, pier, and ice-covered ocean in the summer. The island is Saunders Island. The ship is most likely the CCGS Henry Larsen in 2007. [Credit: Unknown]

Thule AFB with its airport, pier, and ice-covered ocean in the summer. The island is Saunders Island. The ship is most likely the CCGS Henry Larsen in 2007. [Credit: Unknown]

The satellite image of the ice-covered fjord with Thule, Saunders Island, and Chamberlin Gletschers shows a richly texture field of sea ice. The sea ice is stuck to land and not moving except in the west (top left) where it starts to break up as seen by the dark gray piece that shows ‘black’ water peeking from below a very thin layer of new ice. There is also a polynya at 69:15′ W and 76:39′ N just to the south of an island off a cape. A polynya is open water that shows as black of very dark patches. A similar albeit weaker feature also shows to the east of Saunders Island, but it is frozen over, but the ice there is not as thick as it is over the rest of Westenholme Fjord. I suspect that larger tidal currents over shallow water mix ocean heat up to the surface to keep these waters covered by water or dangerously thin ice. There are also many icebergs grounded in the fjord. They cast shadows and from the length of these shadows one could estimate their height. Here is another such photo from 2 days ago:

LandSat photo/map of Thule, Greenland Mar.-21, 2016. The airfield of Thule Air Force Base is seen near the bottom on the right. The island in ice-covered Westenholme Fjord is Saunders Island (bottom left) while the glacier top right is Chamberlin Gletscher.

LandSat photo/map of Thule, Greenland Mar.-21, 2016. The airfield of Thule Air Force Base is seen near the bottom on the right. The island in ice-covered Westenholme Fjord is Saunders Island (bottom left) while the glacier top right is Chamberlin Gletscher.

I am using the satellite data and maps here to plan an experiment on the sea ice of Westenholme Fjord. Next year in March/April I will lead a team of oceanographers, engineers, and acousticians to place and test an underwater network to send data from the bottom of the ocean under the sea ice near Saunders Island to the pier at Thule and from there on to the internet. We plan to whisper from one underwater listening post to another to communicate over long ranges (20-50 kilometers) via a network of relay stations each operating smartly at very low energy levels. We will deploy these stations through holes drilled through the landfast ice 1-2 meters thick. The work is very exploratory and is funded by the National Science Foundation. Wish us luck, as we can and will use it … along with aerial photography that we turn into maps.
